Reciprocating ball reducer

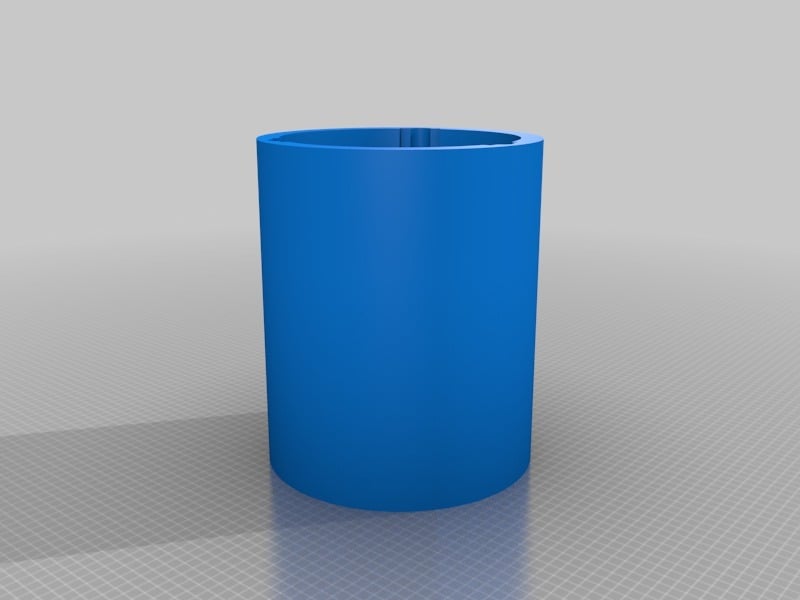

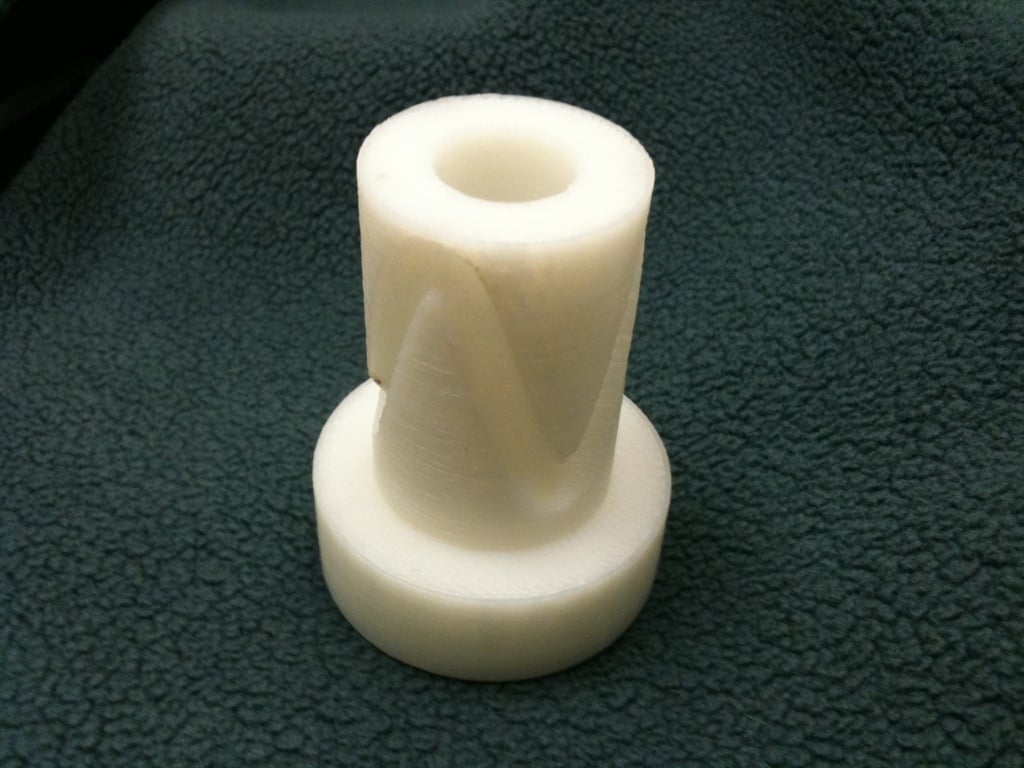

Converts rotation into reciprocating (linear back & forth) motion.Functioning parameterized design, so you can make it as big as you want.I designed this as a motion study, and to see how well this would work on a 3d-printer. It works surprisingly well.It's currently designed to be hand-operated, but easily modifiable to be motor-driven. Motor-driving it is on my short-list.In the hand-driven configuration, it needs to be held together by hand as you turn it to get the correct motion. I would be very happy to see your application for this!The case could use some modifications (e.g. attachment points) depending on your application.I recommend a Frequency 3, Radius 1 inch, Height 1 inch as a working starting point.Anything below Frequency 3 will bind. I've tried 1, 2, and 3. If you modelled in some support tracks for Freq 1 or 2, it could work.Anything below about a 1:1 ratio (radius to amplitude) will bind at frequency 3 (I've gotten a 1:2 at frequency 1 almost working, adding extra support track may fix this if you want to try something small with longer travel) --- Imported from Thingiverse: https://www.thingiverse.com/thing:9853 Original creator: corknut
